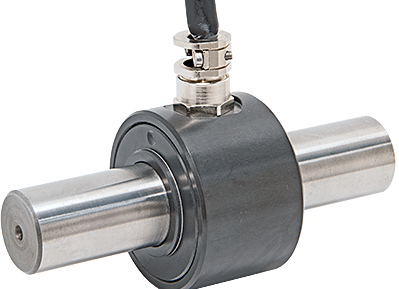

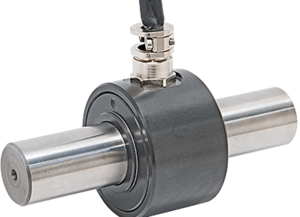

"DRW-K" Torque sensor optionally with keyway

19 torque range ± 0 - 0,5 Nm to ± 0 - 20.000 Nm

  • No maintenance needed
  • Wide application range
  • 100% torque monitoring
  • Small size
  • Option keyway

Because of their compact design, the DFW-K transducer series is suitable for applications in the lab and in industry. As these devices do not rotate and have no moving parts, they require absolutely no maintenance and do not suffer degradation due to wear.

Also available in an active version in combination with the DMSVE amplifier unit.

Technical specifications

 (a) active(p) passive
Supply voltage12 - 30 V DC12 V DC ±10 %
Power consumption50 mA max.35 mA. max.
Characteristic sensitivity0 to ± 10 V1 mV/V (± 0,25 %)
Nonlinearity< 0,1 %
Hysteresis< 0,1 %
Deviation at zero point ≤ 0,01 mV/V
Internal resistance 350 Ω nominal
Compensated temp. range5 - 45 °C
Operating temperature0 - 60 °C
Temperature fault
   Zero point
   Sensitivity

0,02 % / K
0,01 % / K
Mechanical overload100 %
Connectionfree cable end
Cable length2,5 m
Internal protectionIP40

Downloads

Datasheet

Operating Instructions

STEP-Files

DRW-K..  0,5 | 1DRW-K 0,5-1
DRW-K..  2 | 5 | 10DRW-K 2-10
DRW-K..  15 | 20DRW-K 15-20
DRW-K..  50DRW-K 50
DRW-K.. 100 | 200DRW-K 100-200
DRW-K.. 500 | 1000DRW-K 500-1000
DRW-K.. 2 | 3 | 4 | 5 kNmDRW-K 2000-5000
DRW-K.. 10 | 15 | 20 kNmDRW-K 10-20 kNm

Scope of Delivery

Works certificate with 25% steps with right and left load. (Other calibrations upon request!)

Option: (passive) connection cable 2.5m with 6pin-coupling plug including coupling socket.

Delivery variants Connection cable (active):

  • Amplifier integrated in the measuring cable through a fixed intermediate box, free cable ends Supply: 17-30 V DC
  • Amplifier integrated in the measuring cable through a fixed intermediate box, robotic cable with free cable ends (ID number 113) Supply: 17-30 V DC

Available Accessories

Analyzers

  • ValueMasterBase (only in combination with amplifier "DMSVE")
  • GMV2
  • ValueView

Measuring cables
Couplings
