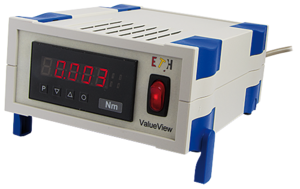

Supply and display unit ValueView-S
for active torque transducers
- 24 bit resolution
- up to 50 measurements per second
- permanent min/max-display
- tara-function
- sensorfeeding
- peak value measurement
Description
The supply and display unit ValueView gives you in connection with ETH-torque transducers a possibility to show torque values in various manner for a reasonable price.
In the standard operating mode “momentary value“ you can read the last measured value alternatively the display can be set to “maximum value” or “minimum value”. The time of taking a reading and the time of the display-cycle can be programmed. On all operating modes a tara-function is available. With the +/- full-scale-input it is also possible to show the direction of the measured torque. On displaying of four programmable switching points you can supervise the compliance of set threshold values. Special versions for passivee transducers and for display of speed are available on demand.
Technical Data
| Supply voltage mains voltage | 115 - 230 VAC ± 10 % (50-60 Hz) |
| Sensor feeding for torque transducers | 12 V DC / 500 mA |
| Indication display 5 digits overflow | LED with 7 segments, 14mm high indication of 4 transversal bars |
| more details see datasheet! | |
Variants
| S-01: Single device = standard | torque display |
| S-02: Standard + Variant | RS232 for torque signal |
| S-03: Standard + Variant | Four potential-free changeover contacts for limit value outputs |
| S-04: Standard + Variant | changeover switch on the rear for 2nd measuring range DRDL torque sensors |
| S-05: Standard + Variant | Sensor power supply can be switched between 12V / 15V using a button on the back |
| S-06: Standard + Variant | angle signal looped through by the sensor |
| S-XX: Standard + customer-specific variant | Description of the desired function |
