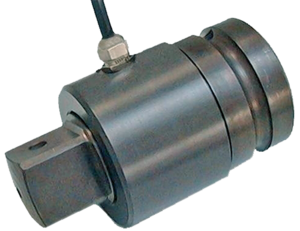

Torque transducer DRN ¼"- 2½"

17 Measurement range:
DRN¼“  ±0 - 2 Nm to 20 Nm
DRN⅜“  ±0 - 20 Nm to 63 Nm
DRN½“  ±0 - 100 Nm to 200 Nm
DRN¾“  ±0 - 200 Nm to 500 Nm
DRN1“  ±0 - 1000 Nm

7 Measurement range:
DRN 1½" ±0 - 2000 Nm to 5000 Nm
DRN 2½" ±0 - 10.000 Nm to 20.000 Nm

for static applications
active or passive model
cost-effective alternative to rotating torque sensor

Suitable for

  • Testing torque wrenches.
  • Precisely tightening screws.
  • Measurement of screwings on badly re achable places.
  • Measuring torque on screwings that are hard to reach.
  • Measuring the friction factor.
  • Measuring the load on flap valve drives max 2 turns.
  • Accuracy 0,15 % full scale.
  • Protection IP50
  • adaptable with standardized square drive DIN312.
  • Input for checking the device chain.

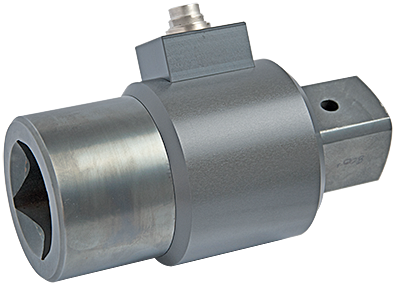

This non-rotating torque transducer is suitable for checking different types of screwing tools or for use as a reference transducer in test benches.
It is a low-cost alternative to the rotating torque transducer. When the supply voltage is input to the transducer and the transducer is not loaded a control signal is output which can be used to adjust the chain.

Measurement range (Nm)

DRN ¼"
2 | 5 | 10 | 12 | 15 | 20
DRN ⅜"
20 | 30 | 50 | 63
DRN ½"
100 | 160 | 200
DRN ¾"
200 | 300 | 500
DRN 1"
1000
DRN 1½"
2000 | 3000 | 4000 | 5000
DRN 2½"
10.000 | 15.000 | 20.000
(Other measurement range on demand)

Technical specifications

Model(a)ctive(p)assive
 standard GMV2
Supply voltage12 / 24 V12 V max.
Power consumption50 mA max.17 mA max.
Voltage output0 - ± 5 Vapprox. 1mV/V
Nonlinearity< 0,15 %< 0,15 %
Hysteresis< 0,1 %< 0,1 %
Deviation at zero point≤ ± 100 mV≤ ± 0,01 mV/V
Internal resistance--700 Ω nominal
Compensated temperature range5 - 45 °C5 - 45 °C
Operating temperature0 - 60 °C0 - 60 °C
Temperature fault
   Zero point
   Sensitivity

0,02 % / K
0,01 % / K

0,02 % / K
0,01 % / K
Mechanical overload40 %40 %
Connection12 pin connectorflying leads
Internal protectionIP50IP50
Cable length2,5 m2,5 m

Scope of delivery

Works certificate with 25% steps with right and left load.
Other calibrations upon request.



Availlable Accessories:
Analyzers

Measuring cables
Adapter
Amplifier unit DMSVE
