DRBK Torque Transducer: The Cost-Effective Alternative

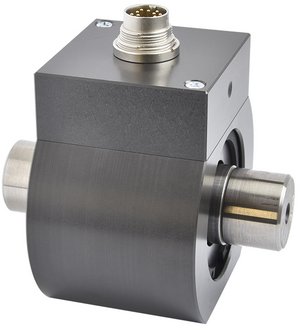

Cheap and short torque sensor "DRBK"

DRBK - preisgünstiger Drehmomentaufnehmer

11 torque range from ± 0 - 0,5 Nm to ± 0 - 1000 Nm

Low cost.
Very short.
Broad input voltage range.
Current output and voltage output.
Optional speed measurement.
Measurement accuracy: ≤ 0,5% of full scale.
Torque ranges from 0,5 to 1000 Nm.
Multipurpose use.
Contactless transfer of measurement signal.
Integrated signal amplifier.
Proven strain gage technology.
Single power supply.

Series DRBK torque transducers are suitable for lab and industrial applications because of their small size and multiple mounting options. As supply voltage and output signal are transmitted without contact, the device can operate continuously with low wear and no maintenance. These transducers are also available with speed measurement for a host of applications. The integrated signal amplifier runs on 11.5 to 30 V DC; it outputs an analog signal of 0 to ± 5 V and a current signal of 10 mA ± 8 mA. Due to its large supply voltage range the transducer can be operated directly from a PLC. The device should be used only with couplings designed specially for it.

Note: This transducer should only be used in conjunction with the specially developed couplings.

Technical specifications

Supply voltage	11,5 to 28,8 V DC
Power consumption	approx. 200 mA
Rise time 10-90%	1 ms
Limit frequency -3dB	1 kHz
Voltage output Internal resistance	0 to ± 5 V 100 Ω
Current output Burden	10 ± 8 mA max 500 Ω
Ripple	< 100 mVss
Nonlinearity	< 0,3 %
Hysteresis	< 0,3 %
Deviation at zero point	≤ ± 100 mV / ± 200 µA
Max. measuerment fault	0,5 % (FS / of full scale)
Operating temperature	0 - 60 °C
Compensated temperature	5 - 45 °C
Temperature error zero point sensitivity	0,05 % / K 0,02 % / K
Mechanical overload	100 %
Internal protection	IP40
Connection	12pin-connector
