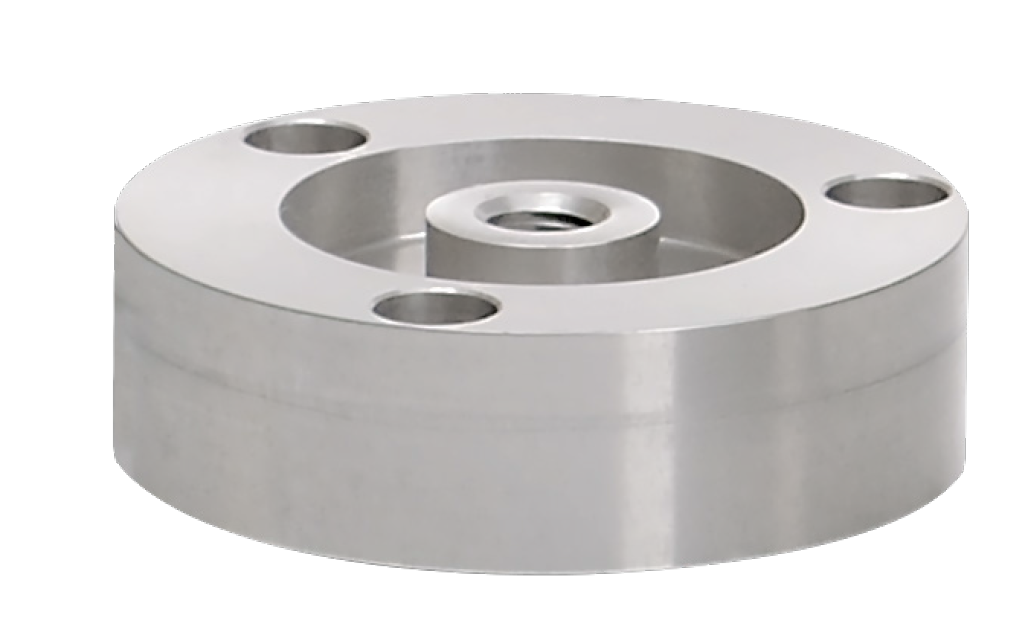

Pull - Pressure Force Sensor 8523
7 Capacities 0-20 N up to 0-5000 kN
Features
- measurement accuracy up to 0.15% FS
- Material high-strength aluminum
- Standardized nominal characteristic value measuring range 0 ... 100 N
- Outstanding value for
This Model series are especially suitable for measuring static and quasi-static tensile or compressive forces. The membrane sensors were constructed based on the proven principle. Due to their compact design and very solid construction makes them suitable for use in manufacturing as well as for applications in laboratories and testing. The characteristics of the sensors (except Model 8523-20 / 50 N) are standardized. This replacement without adjustment of the measuring amplifier is possible. Moreover, this can be connected in parallel to the summation of the individual forces sensors with the same range.
Measurement Range
| 20 | 50 | 100 | 200 | 500 | 1000 | 2000 | 5000 N
