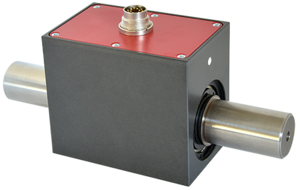

2-range- torque transducer "DRDL"

Simultaneous measurement of peak torque and operating torque

Torquesensor with speed or angle measurement

High accuracy with 100% overload protection

16 measurement range from ± 0 - 0,5 Nm up to ± 0 - 5000 Nm

Features

  • 2 torque ranges (1/10 - 1/2 of the 1st measuring range)
  • Integral signal amplifier
  • Low moment of inertia
  • Single supply voltage
  • Wide range of applications
  • Multipurpose use
  • Contactless output signals
  • Compact
  • Speed measurement (option)
  • Angular measurement (option)

Technical specifications

Supply voltage12V DC ± 10 %
Power consumptionapprox. 200 mA
Rise time 10-90%2 ms
Limit frequency -3dB200 Hz
Voltage output0 to ± 10 V
Internal resistance100 Ω
Ripple< 100 mVss
Nonlinearity<0,1 %
Hysteresis<0,1 %
Deviation at zero point≤ ± 100 mV
Max. measurement error0,1 % (of full scale)
Operating temperature0 - 60 °C
Compensated temperature range5 - 45 °C
Temperature error
     zero point
     sensitivity

0,02 %/K
0,01 %/K
Mechanical overload100 %
Internal protectionIP 40 (DIN 40050)
Connection12pin-connector

Description DRDL

Series DRDL torque transducers are suitable for lab and industrial applications because of their small size and multiple mounting options. As supply voltage and output signal are transmitted without contact, the device can operate continuously with low wear and no maintenance. These transducers are also available with optional speed and angular measurement for a host of applications. The integrated signal amplifier is powered with 12 V DC and outputs an electrically isolated analog signal of 0 to ± 10 V per torque range.



Models / Measurement range

DRDL-I
0,5 | 1 | 2
STEP-File
DRDL-I
DRDL-II
5 | 10 | 20 |50
STEP-File
DRDL-II
DRDL-III
50 | 100 | 200 | 300
STEP-File
DRDL-III
DRDL-IV
500 | 1000 | 1500
STEP-File
DRDL-IV
DRDL-V
2000 | 3000| 4000 | 5000
STEP-File
DRDL-V
2. Measurement rangeselectable when ordering (from 1/10 to 1/2 of the 1. measurement) - other measuring ranges on request! -

Speed option (n)

max rev.up to 10 000 min⁻¹ *
Outputopen-collector
Internal pullup10 kΩ (5 V level)
External pull up24 V max / 20 mA
Pulses/rev.60
* With suitable external wiring 20.000 min⁻¹ (or speed max.)

Angle option (w)

max rev.up to 3000 min⁻¹ **
Outputopen-collector
Internal pull up10 kΩ (5 V level)
External pull up24 V max. / 20 mA
Pulses/rev.360
Resolution
Phase shiftChannel A 90° at right spin of propulsion side
** With suitable external wiring 15.000 min⁻¹ (or speed max.)
